Bolt anchor CH-PL

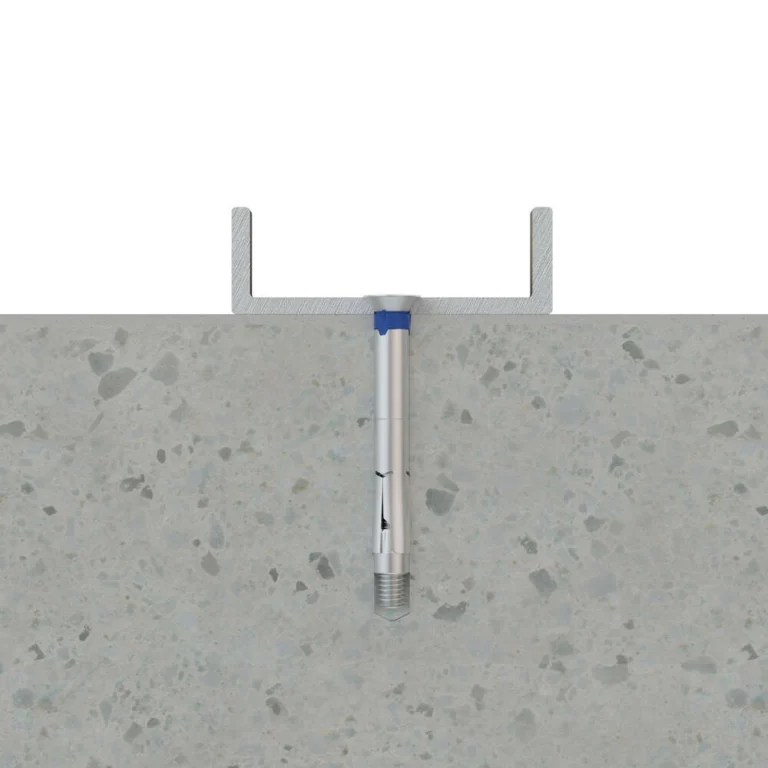

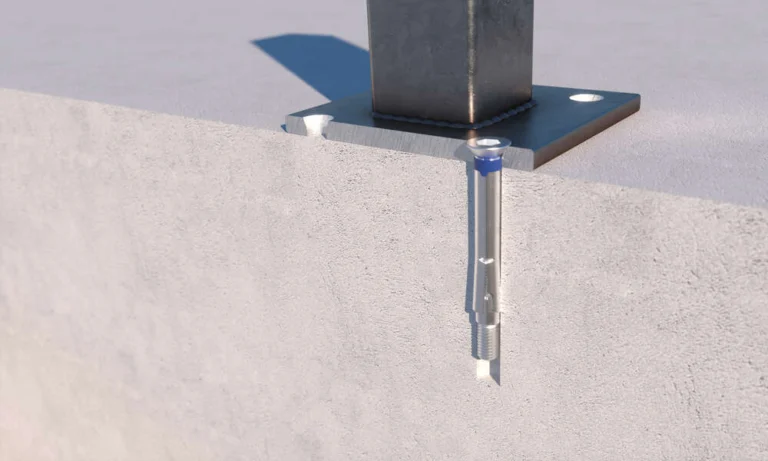

Sleeve-type anchor with flat head. For medium loads on solid materials. Works through mechanical expansion by controlled torque. It has anti-rotation devices that prevent the anchor from rotating during tightening. Approved by ETE Opt.7. Made from A2 stainless steel.

Body material

Select
Select
A2

Ring material

Select ring material
Select
A2

Diameter

Select
Select
M6
M8
M10

Length

Select
Select
45
60
70
80
100

View all sizes

Code Description Length (mm) Diameter UOM No. pcs Stock
ACHTPL08C Bolt anchor CH-PL M6x45, footprint: 4 45 M6 piece 100 Sign up or log in to view availability and prices.
ACHTPL08L Bolt anchor CH-PL M6x60, footprint: 4 60 M6 piece 100 Sign up or log in to view availability and prices.
ACHTPL10C Bolt anchor CH-PL M8x60, footprint: 5 60 M8 piece 100 Sign up or log in to view availability and prices.
ACHTPL10L Bolt anchor CH-PL M8x80, footprint: 5 80 M8 piece 100 Sign up or log in to view availability and prices.
ACHTPL12C Bolt anchor CH-PL M10x70, footprint: 6 70 M10 piece 50 Sign up or log in to view availability and prices.
ACHTPL12L Bolt anchor CH-PL M10x100, footprint: 6 100 M10 piece 50 Sign up or log in to view availability and prices.
