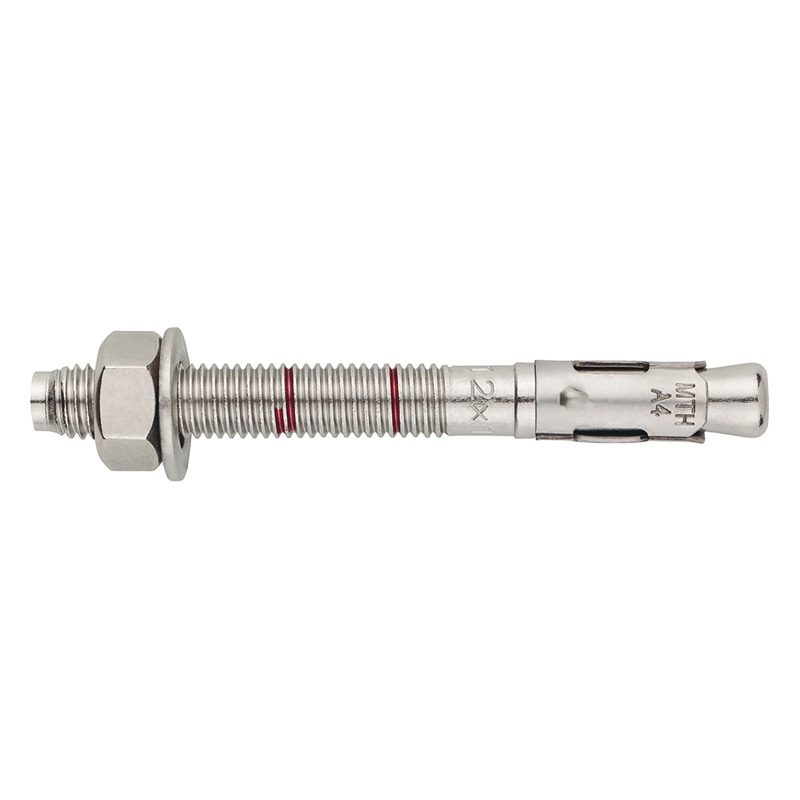

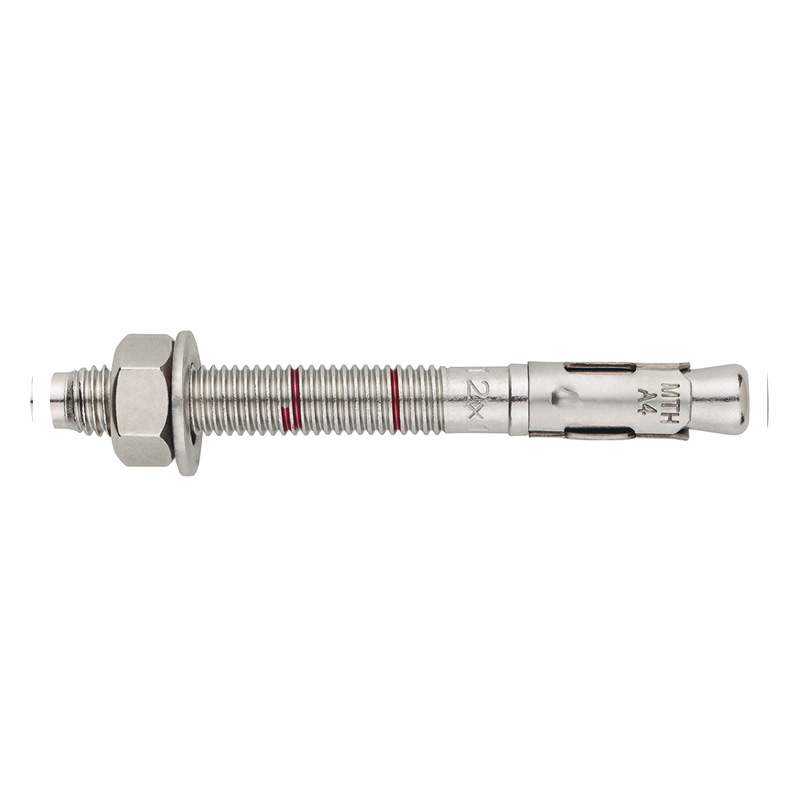

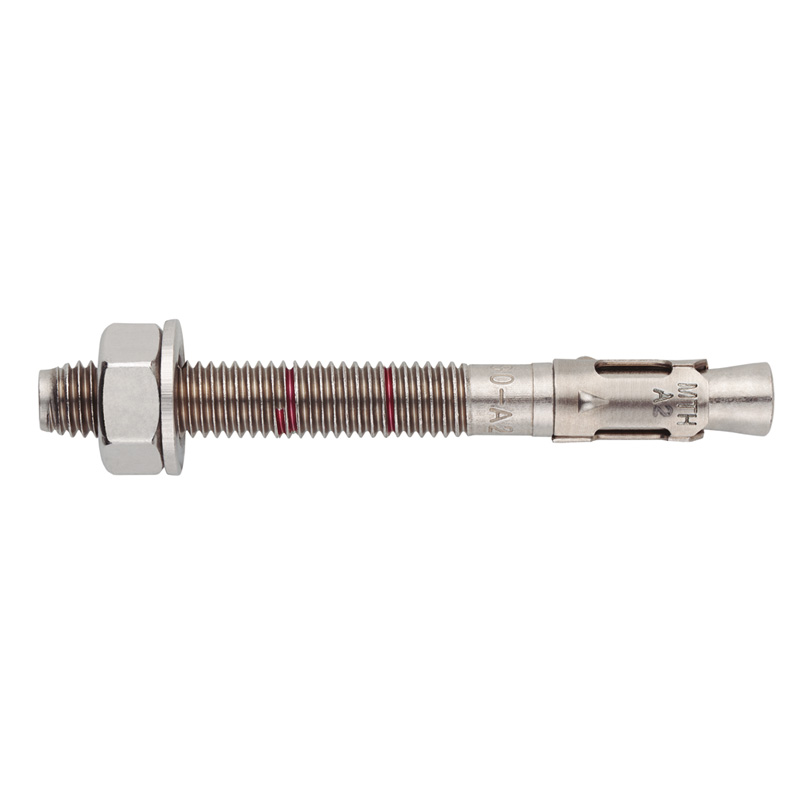

Bolt anchor MTH
Metal expansion anchor for fixing high load-bearing elements on non-cracked concrete. Installation by controlled torque. ETE Opt.7 assessed for structural applications. Zinc plated steel shaft and clips.
Body material
Select
Ring material
Select ring material
Diameter
Select
Length
Select
View all sizes
| Code | Description | Length (mm) | Diameter | Surf. protect | Max. thickness | UOM | No. pcs | Stock | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AH06060 | Bolt anchor MTH M6x60 | 60 | M6 | Zn | 2 | piece | 200 | Sign up or log in to view availability and prices. | ||
| AH06070 | Bolt anchor MTH M6x70 | 70 | M6 | Zn | 12 | piece | 200 | Sign up or log in to view availability and prices. | ||
| AH06080 | Bolt anchor MTH M6x80 | 80 | M6 | Zn | 22 | piece | 200 | Sign up or log in to view availability and prices. | ||
| AH06090 | Bolt anchor MTH M6x90 | 90 | M6 | Zn | 32 | piece | 200 | Sign up or log in to view availability and prices. | ||
| AH06100 | Bolt anchor MTH M6x100 | 100 | M6 | Zn | 42 | piece | 200 | Sign up or log in to view availability and prices. | ||
| AH06110 | Bolt anchor MTH M6x110 | 110 | M6 | Zn | 52 | piece | 200 | Sign up or log in to view availability and prices. | ||
| AH06120 | Bolt anchor MTH M6x120 | 120 | M6 | Zn | 62 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH06130 | Bolt anchor MTH M6x130 | 130 | M6 | Zn | 72 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH06140 | Bolt anchor MTH M6x140 | 140 | M6 | Zn | 82 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH06150 | Bolt anchor MTH M6x150 | 150 | M6 | Zn | 92 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH06160 | Bolt anchor MTH M6x160 | 160 | M6 | Zn | 102 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH06170 | Bolt anchor MTH M6x170 | 170 | M6 | Zn | 112 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH06180 | Bolt anchor MTH M6x180 | 180 | M6 | Zn | 122 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH08060 | Bolt anchor MTH M8x60 | 60 | M8 | Zn | 3 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH08075 | Bolt anchor MTH M8x75 | 75 | M8 | Zn | 5 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH08090 | Bolt anchor MTH M8x90 | 90 | M8 | Zn | 20 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH08100 | Bolt anchor MTH M8x100 | 100 | M8 | Zn | 30 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH08115 | Bolt anchor MTH M8x115 | 115 | M8 | Zn | 45 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH08120 | Bolt anchor MTH M8x120 | 120 | M8 | Zn | 50 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH08130 | Bolt anchor MTH M8x130 | 130 | M8 | Zn | 60 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH08155 | Bolt anchor MTH M8x155 | 155 | M8 | Zn | 85 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH10070 | Bolt anchor MTH M10x70 | 70 | M10 | Zn | 3 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH10080 | Bolt anchor MTH M10x80 | 80 | M10 | Zn | 13 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH10090 | Bolt anchor MTH M10x90 | 90 | M10 | Zn | 10 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH10100 | Bolt anchor MTH M10x100 | 100 | M10 | Zn | 20 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AH10120 | Bolt anchor MTH M10x120 | 120 | M10 | Zn | 40 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH10140 | Bolt anchor MTH M10x140 | 140 | M10 | Zn | 60 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH10150 | Bolt anchor MTH M10x150 | 150 | M10 | Zn | 70 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH10160 | Bolt anchor MTH M10x160 | 160 | M10 | Zn | 80 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH10170 | Bolt anchor MTH M10x170 | 170 | M10 | Zn | 90 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH10210 | Bolt anchor MTH M10x210 | 210 | M10 | Zn | 130 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH10230 | Bolt anchor MTH M10x230 | 230 | M10 | Zn | 150 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12090 | Bolt anchor MTH M12x90 | 90 | M12 | Zn | 13 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12100 | Bolt anchor MTH M12x100 | 100 | M12 | Zn | 8 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12110 | Bolt anchor MTH M12x110 | 110 | M12 | Zn | 18 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12120 | Bolt anchor MTH M12x120 | 120 | M12 | Zn | 28 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12130 | Bolt anchor MTH M12x130 | 130 | M12 | Zn | 38 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12140 | Bolt anchor MTH M12x140 | 140 | M12 | Zn | 48 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12160 | Bolt anchor MTH M12x160 | 160 | M12 | Zn | 68 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12180 | Bolt anchor MTH M12x180 | 180 | M12 | Zn | 88 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12200 | Bolt anchor MTH M12x200 | 200 | M12 | Zn | 108 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12220 | Bolt anchor MTH M12x220 | 220 | M12 | Zn | 128 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AH12250 | Bolt anchor MTH M12x250 | 250 | M12 | Zn | 158 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH14120 | Bolt anchor MTH M14x120 | 120 | M14 | Zn | 12 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH14145 | Bolt anchor MTH M14x145 | 145 | M14 | Zn | 37 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH14170 | Bolt anchor MTH M14x170 | 170 | M14 | Zn | 62 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH14220 | Bolt anchor MTH M14x220 | 220 | M14 | Zn | 112 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH14250 | Bolt anchor MTH M14x250 | 250 | M14 | Zn | 142 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH16125 | Bolt anchor MTH M16x125 | 125 | M16 | Zn | 3 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH16145 | Bolt anchor MTH M16x145 | 145 | M16 | Zn | 23 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH16170 | Bolt anchor MTH M16x170 | 170 | M16 | Zn | 48 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH16220 | Bolt anchor MTH M16x220 | 220 | M16 | Zn | 98 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH16250 | Bolt anchor MTH M16x250 | 250 | M16 | Zn | 128 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH16280 | Bolt anchor MTH M16x280 | 280 | M16 | Zn | 158 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AH20170 | Bolt anchor MTH M20x170 | 170 | M20 | Zn | 23 | piece | 20 | Sign up or log in to view availability and prices. | ||
| AH20220 | Bolt anchor MTH M20x220 | 220 | M20 | Zn | 73 | piece | 20 | Sign up or log in to view availability and prices. | ||
| AH20270 | Bolt anchor MTH M20x270 | 270 | M20 | Zn | 123 | piece | 20 | Sign up or log in to view availability and prices. | ||
| LSAH08060 | Bolt anchor MTH M8x60 | 60 | M8 | Zn | piece | 20 | Sign up or log in to view availability and prices. | |||
| LSAH10070 | Bolt anchor MTH M10x70 | 70 | M10 | Zn | piece | 10 | Sign up or log in to view availability and prices. | |||
| BZMI08075 | Bolt anchor MTH-A2 M8x75 | 75 | M8 | piece | 2 | Sign up or log in to view availability and prices. | ||||
| BZMI10090 | Bolt anchor MTH-A2 M10x90 | 90 | M10 | piece | 2 | Sign up or log in to view availability and prices. | ||||
| LSMI08075 | Bolt anchor MTH-A2 M8x75 | 75 | M8 | piece | 12 | Sign up or log in to view availability and prices. | ||||
| LSMI08090 | Bolt anchor MTH-A2 M8x90 | 90 | M8 | piece | 12 | Sign up or log in to view availability and prices. | ||||
| LSMI10070 | Bolt anchor MTH-A2 M10x70 | 70 | M10 | piece | 10 | Sign up or log in to view availability and prices. | ||||
| LSMI10090 | Bolt anchor MTH-A2 M10x90 | 90 | M10 | piece | 8 | Sign up or log in to view availability and prices. | ||||
| LSMI12110 | Bolt anchor MTH-A2 M12x110 | 110 | M12 | piece | 6 | Sign up or log in to view availability and prices. | ||||
| MI06045 | Bolt anchor MTH-A2 M6x45 | 45 | M6 | piece | 200 | Sign up or log in to view availability and prices. | ||||
| MI06060 | Bolt anchor MTH-A2 M6x60 | 60 | M6 | 2 | piece | 200 | Sign up or log in to view availability and prices. | |||
| MI06080 | Bolt anchor MTH-A2 M6x80 | 80 | M6 | 22 | piece | 200 | Sign up or log in to view availability and prices. | |||
| MI06120 | Bolt anchor MTH-A2 M6x120 | 120 | M6 | 62 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MI06140 | Bolt anchor MTH-A2 M6x140 | 140 | M6 | 82 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MI06160 | Bolt anchor MTH-A2 M6x160 | 160 | M6 | 102 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MI06170 | Bolt anchor MTH-A2 M6x170 | 170 | M6 | 112 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MI06180 | Bolt anchor MTH-A2 M6x180 | 180 | M6 | 122 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MI08050 | Bolt anchor MTH-A2 M8x50 | 50 | M8 | piece | 100 | Sign up or log in to view availability and prices. | ||||
| MI08075 | Bolt anchor MTH-A2 M8x75 | 75 | M8 | 5 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MI08090 | Bolt anchor MTH-A2 M8x90 | 90 | M8 | 20 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MI08115 | Bolt anchor MTH-A2 M8x115 | 115 | M8 | 45 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MI10070 | Bolt anchor MTH-A2 M10x70 | 70 | M10 | 3 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MI10090 | Bolt anchor MTH-A2 M10x90 | 90 | M10 | 10 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MI10120 | Bolt anchor MTH-A2 M10x120 | 120 | M10 | 40 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MI10150 | Bolt anchor MTH-A2 M10x150 | 150 | M10 | 70 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MI12075 | Bolt anchor MTH-A2 M12x75 | 75 | M12 | piece | 50 | Sign up or log in to view availability and prices. | ||||
| MI12090 | Bolt anchor MTH-A2 M12x90 | 90 | M12 | 13 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MI12110 | Bolt anchor MTH-A2 M12x110 | 110 | M12 | 18 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MI12140 | Bolt anchor MTH-A2 M12x140 | 140 | M12 | 48 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MI16090 | Bolt anchor MTH-A2 M16x90 | 90 | M16 | piece | 25 | Sign up or log in to view availability and prices. | ||||
| MI16145 | Bolt anchor MTH-A2 M16x145 | 145 | M16 | 23 | piece | 25 | Sign up or log in to view availability and prices. | |||
| MI16170 | Bolt anchor MTH-A2 M16x170 | 170 | M16 | 48 | piece | 25 | Sign up or log in to view availability and prices. | |||
| MI20120 | Bolt anchor MTH-A2 M20x120 | 120 | M20 | 5 | piece | 20 | Sign up or log in to view availability and prices. | |||
| MI20170 | Bolt anchor MTH-A2 M20x170 | 170 | M20 | 23 | piece | 20 | Sign up or log in to view availability and prices. | |||
| MI20220 | Bolt anchor MTH-A2 M20x220 | 220 | M20 | 73 | piece | 20 | Sign up or log in to view availability and prices. | |||
| VMI08075 | Bolt anchor MTH-A2 M8x75 | 75 | M8 | piece | 10 | Sign up or log in to view availability and prices. | ||||
| VMI08090 | Bolt anchor MTH-A2 M8x90 | 90 | M8 | piece | 10 | Sign up or log in to view availability and prices. | ||||
| VMI10070 | Bolt anchor MTH-A2 M10x70 | 70 | M10 | piece | 8 | Sign up or log in to view availability and prices. | ||||
| VMI10090 | Bolt anchor MTH-A2 M10x90 | 90 | M10 | piece | 8 | Sign up or log in to view availability and prices. | ||||
| VMI10120 | Bolt anchor MTH-A2 M10x120 | 120 | M10 | piece | 6 | Sign up or log in to view availability and prices. | ||||
| VMI12110 | Bolt anchor MTH-A2 M12x110 | 110 | M12 | piece | 6 | Sign up or log in to view availability and prices. | ||||
| LSMIA408075 | Bolt anchor MTH-A4 M8x75 | 75 | M8 | piece | 12 | Sign up or log in to view availability and prices. | ||||
| LSMIA410090 | Bolt anchor MTH-A4 M10x90 | 90 | M10 | piece | 8 | Sign up or log in to view availability and prices. | ||||
| LSMIA412110 | Bolt anchor MTH-A4 M12x110 | 110 | M12 | piece | 6 | Sign up or log in to view availability and prices. | ||||
| MIA406045 | Bolt anchor MTH-A4 M6x45 | 45 | M6 | piece | 200 | Sign up or log in to view availability and prices. | ||||
| MIA406060 | Bolt anchor MTH-A4 M6x60 | 60 | M6 | 2 | piece | 200 | Sign up or log in to view availability and prices. | |||
| MIA406080 | Bolt anchor MTH-A4 M6x80 | 80 | M6 | 22 | piece | 200 | Sign up or log in to view availability and prices. | |||
| MIA408050 | Bolt anchor MTH-A4 M8x50 | 50 | M8 | 4 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MIA408075 | Bolt anchor MTH-A4 M8x75 | 75 | M8 | 5 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MIA408090 | Bolt anchor MTH-A4 M8x90 | 90 | M8 | 20 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MIA408115 | Bolt anchor MTH-A4 M8x115 | 115 | M8 | 45 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MIA410070 | Bolt anchor MTH-A4 M10x70 | 70 | M10 | 3 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MIA410090 | Bolt anchor MTH-A4 M10x90 | 90 | M10 | 10 | piece | 100 | Sign up or log in to view availability and prices. | |||
| MIA410120 | Bolt anchor MTH-A4 M10x120 | 120 | M10 | 40 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MIA410150 | Bolt anchor MTH-A4 M10x150 | 150 | M10 | 70 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MIA412075 | Bolt anchor MTH-A4 M12x75 | 75 | M12 | 5 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MIA412090 | Bolt anchor MTH-A4 M12x90 | 90 | M12 | 13 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MIA412110 | Bolt anchor MTH-A4 M12x110 | 110 | M12 | 18 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MIA412140 | Bolt anchor MTH-A4 M12x140 | 140 | M12 | 48 | piece | 50 | Sign up or log in to view availability and prices. | |||
| MIA416090 | Bolt anchor MTH-A4 M16x90 | 90 | M16 | 4 | piece | 25 | Sign up or log in to view availability and prices. | |||
| MIA416145 | Bolt anchor MTH-A4 M16x145 | 145 | M16 | 23 | piece | 25 | Sign up or log in to view availability and prices. | |||
| MIA416170 | Bolt anchor MTH-A4 M16x170 | 170 | M16 | 48 | piece | 25 | Sign up or log in to view availability and prices. | |||
| MIA420120 | Bolt anchor MTH-A4 M20x120 | 120 | M20 | 5 | piece | 20 | Sign up or log in to view availability and prices. | |||
| MIA420170 | Bolt anchor MTH-A4 M20x170 | 170 | M20 | 23 | piece | 20 | Sign up or log in to view availability and prices. | |||
| MIA420220 | Bolt anchor MTH-A4 M20x220 | 220 | M20 | 73 | piece | 20 | Sign up or log in to view availability and prices. | |||
| VMIA408075 | Bolt anchor MTH-A4 M8x75 | 75 | M8 | piece | 10 | Sign up or log in to view availability and prices. | ||||
| VMIA410090 | Bolt anchor MTH-A4 M10x90 | 90 | M10 | piece | 8 | Sign up or log in to view availability and prices. | ||||
| VMIA412110 | Bolt anchor MTH-A4 M12x110 | 110 | M12 | piece | 6 | Sign up or log in to view availability and prices. |
