DIN 7504K

DIN 7504-K RE

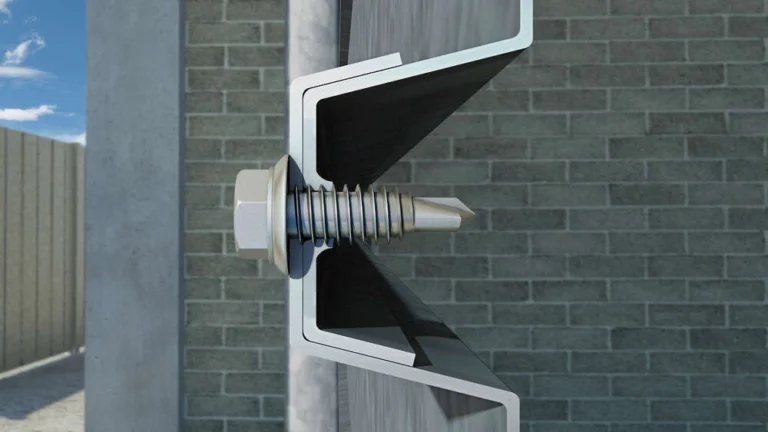

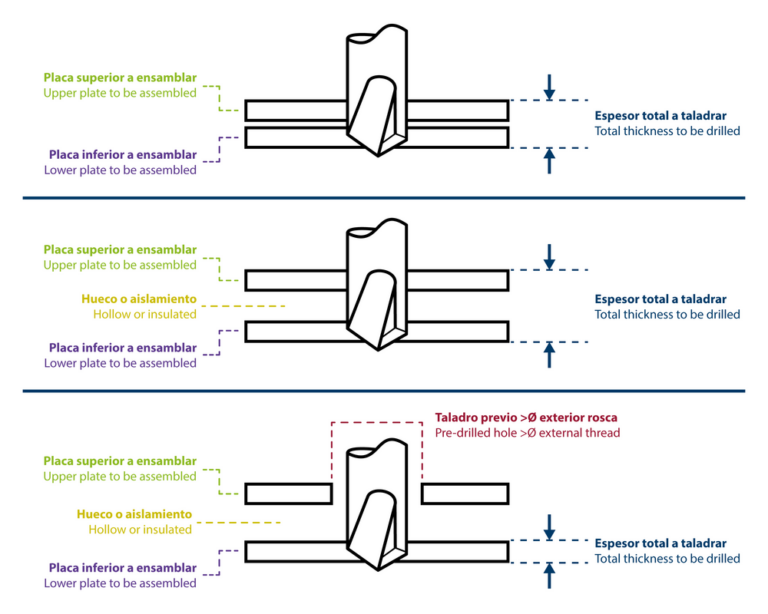

DIN-7504-K screw with reduced point, hexagonal head and moulded washer. Its special point allows it to join sheets of up to 1.5 mm without the screw over-threading. It is self-drilling, so no holes need to be drilled prior to installation. It is made of zinc-plated steel.

Body material

Select
Select
Steel

Diameter

Select
Select
4,8
5,5
6,3

Length

Select
Select
16
19
20
22
25
32
38
50
63
80

View all sizes

Code Description Length (mm) Diameter Surf. protect UOM No. pcs Stock
ARE4816 Self-drilling screw DIN7504K RE Zn 4,8x16, footprint: 8 16 4,8 Zn 1/C 500 Sign up or log in to view availability and prices.
ARE4819 Self-drilling screw DIN7504K RE Zn 4,8x19, footprint: 8 19 4,8 Zn 1/C 500 Sign up or log in to view availability and prices.
ARE5522 Self-drilling screw DIN7504K RE Zn 5,5x22, footprint: 8 22 5,5 Zn 1/C 500 Sign up or log in to view availability and prices.
ARE6320 Self-drilling screw DIN7504K RE Zn 6,3x20, footprint: 8 20 6,3 Zn 1/C 500 Sign up or log in to view availability and prices.
ARE6325 Self-drilling screw DIN7504K RE Zn 6,3x25, footprint: 8 25 6,3 Zn 1/C 500 Sign up or log in to view availability and prices.
ARE6332 Self-drilling screw DIN7504K RE Zn 6,3x32, footprint: 8 32 6,3 Zn 1/C 500 Sign up or log in to view availability and prices.
ARE6338 Self-drilling screw DIN7504K RE Zn 6,3x38, footprint: 8 38 6,3 Zn 1/C 500 Sign up or log in to view availability and prices.
ARE6350 Self-drilling screw DIN7504K RE Zn 6,3x50, footprint: 8 50 6,3 Zn 1/C 250 Sign up or log in to view availability and prices.
ARE6363 Self-drilling screw DIN7504K RE Zn 6,3x63, footprint: 8 63 6,3 Zn 1/C 250 Sign up or log in to view availability and prices.
ARE6380 Self-drilling screw DIN7504K RE Zn 6,3x80, footprint: 8 80 6,3 Zn 1/C 250 Sign up or log in to view availability and prices.
