DIN 7504K
DIN 7504-K RE + ARVUL

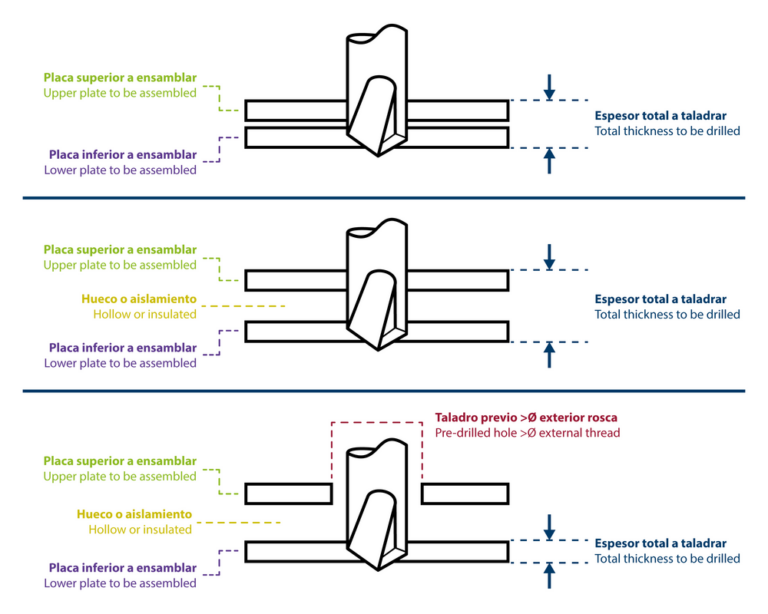

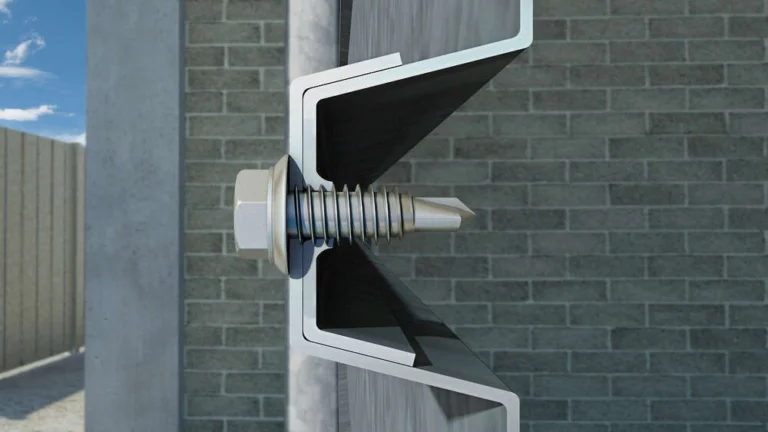

DIN-7504-K screw with reduced point and mounted with a vulcanised steel-EPDM washer. It is self-drilling, hexagonal headed and incorporates a stamped washer. The special diameter of the point allows sheets of up to 1.5 mm to be joined without the screw over-threading. The vulcanised EPDM washer allows watertight joints to be achieved. It is made of zinc-plated steel.
Body material
Select
Diameter
Select
Length
Select
View all sizes
| Code | Description | Length (mm) | Diameter | Surf. protect | UOM | No. pcs | Stock | ||
|---|---|---|---|---|---|---|---|---|---|
| ARE164816 | Self-drilling screw with EPDM DIN7504K Zn 4,8x16 P16, footprint: 8 | 16 | 4,8 | Zn | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ARE164819 | Self-drilling screw with EPDM DIN7504K Zn 4,8x19, footprint: 8 | 19 | 4,8 | Zn | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ARE165522 | Self-drilling screw with EPDM DIN7504K Zn 5,5x22, footprint: 8 | 22 | 5,5 | Zn | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ARE166320 | Self-drilling screw with EPDM DIN7504K Zn 6,3x20, footprint: 8 | 20 | 6,3 | Zn | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ARE166325 | Self-drilling screw with EPDM DIN7504K Zn 6,3x25, footprint: 8 | 25 | 6,3 | Zn | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ARE166332 | Self-drilling screw with EPDM DIN7504K Zn 6,3x32, footprint: 8 | 32 | 6,3 | Zn | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ARE166338 | Self-drilling screw with EPDM DIN7504K Zn 6,3x38, footprint: 8 | 38 | 6,3 | Zn | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ARE166350 | Self-drilling screw with EPDM DIN7504K Zn 6,3x50, footprint: 8 | 50 | 6,3 | Zn | 1/C | 250 | Sign up or log in to view availability and prices. |
