AUTO + ARVUL

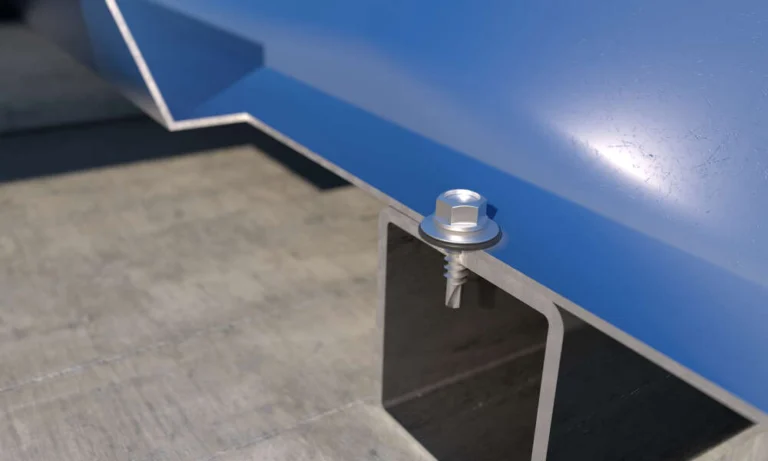

Self-drilling screw for beams, assembled with steel-EPDM washer. It has a hexagonal head and incorporates a stamped washer. It has an extra-long point that allows for the fastening of especially thick sheets, up to 12 mm thick. It can be used to join sheets to IPN beams. The vulcanised EPDM washer ensures watertight joints. It is made of zinc-plated steel.
Body material
Select
Diameter
Select
Length
Select
View all sizes
| Code | Description | Length (mm) | Diameter | Surf. protect | Max. thickness | UOM | No. pcs | Stock | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AUTO16532 | Self-drilling screw AUTO with EPDM Zn 5,5x32 P16, footprint: 8 | 32 | 5,5 | Zn | 19,5 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| AUTO16538 | Self-drilling screw AUTO with EPDM Zn 5,5x38 P16, footprint: 8 | 38 | 5,5 | Zn | 25,5 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| AUTO16550 | Self-drilling screw AUTO with EPDM Zn 5,5x50 P16, footprint: 8 | 50 | 5,5 | Zn | 37,5 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| AUTO16560 | Self-drilling screw AUTO with EPDM Zn 5,5x60 P16, footprint: 8 | 60 | 5,5 | Zn | 47,5 | 1/C | 250 | Sign up or log in to view availability and prices. | ||
| AUTO16580 | Self-drilling screw AUTO with EPDM Zn 5,5x80 P16, footprint: 8 | 80 | 5,5 | Zn | 65 | 1/C | 250 | Sign up or log in to view availability and prices. | ||
| AUTO16510 | Self-drilling screw AUTO with EPDM Zn 5,5x100 P16, footprint: 8 | 100 | 5,5 | Zn | 78 | 1/C | 100 | Sign up or log in to view availability and prices. |
