ABE A4 BIMETAL

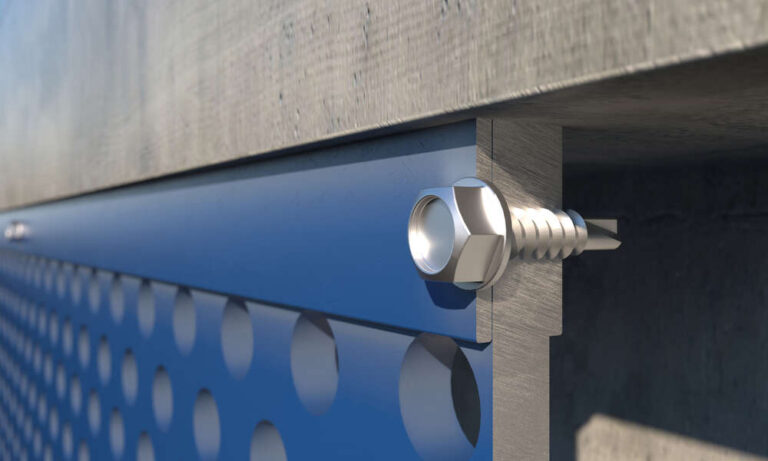

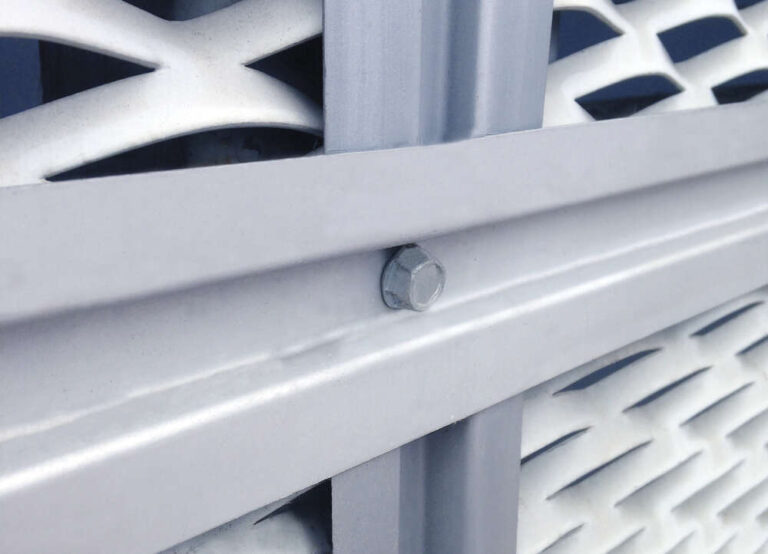

Bimetal self-drilling screw with hexagonal head and stamped washer. Its drill-type tip allows you to fix sheets without the need for prior drilling. It combines an A4 stainless steel body, which is especially resistant to corrosion, with a hardened steel tip, which makes it possible to drill and thread steel. It has an Atlantis C3-H coating.

Body material

Select
Select
A4

Diameter

Select
Select
5,5
6,3

Length

Select
Select
25
32
50
65

View all sizes

Code Description Length (mm) Diameter Max. thickness UOM No. pcs Stock
BIE45525 Self-drilling screw ABE BIMETAL A4 5,5x25, footprint: 8 25 5,5 3 1/C 500 Sign up or log in to view availability and prices.
BIE45532 Self-drilling screw ABE BIMETAL A4 5,5x32, footprint: 8 32 5,5 10 1/C 500 Sign up or log in to view availability and prices.
BIE45550 Self-drilling screw ABE BIMETAL A4 5,5x50, footprint: 8 50 5,5 28 1/C 500 Sign up or log in to view availability and prices.
BIE45565 Self-drilling screw ABE BIMETAL A4 5,5x65, footprint: 8 65 5,5 43 1/C 250 Sign up or log in to view availability and prices.
BIE46325 Self-drilling screw ABE BIMETAL A4 6,3x25, footprint: 10 25 6,3 5 1/C 500 Sign up or log in to view availability and prices.
