PS 3 + ARVUL

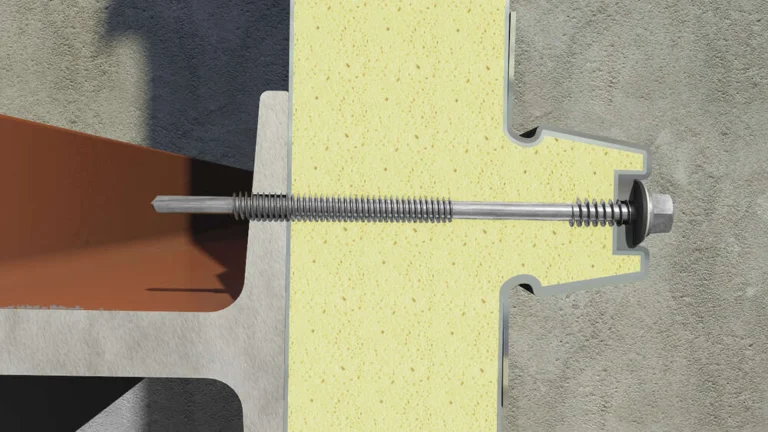

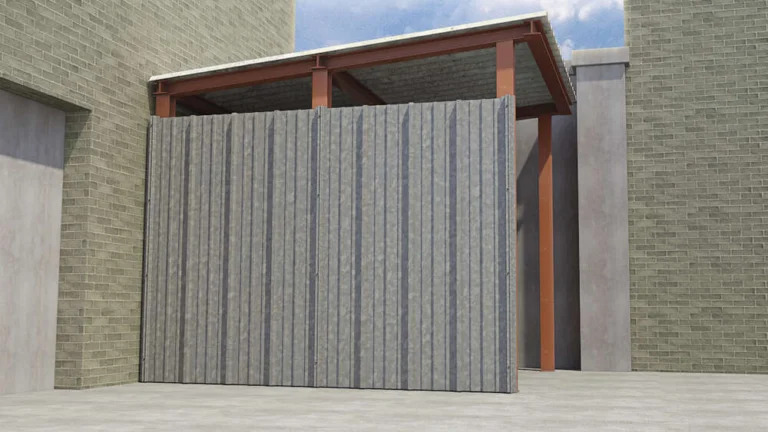

Screw for sandwich panels mounted with EPDM-steel vulcanised washer. It is self-drilling, hexagonal-headed and incorporates a stamped washer. It allows the panels to be fixed on purlins on roofs or enclosures. Its #3 drill point allows direct installation on the material, without pre-drilling. The vulcanised EPDM washer allows for watertight joints. It is made of zinc-plated steel.

Body material

Select
Select
Steel
A2

Diameter

Select
Select
5,5/6,3

Length

Select
Select
60
82
98
115
130
150
180
195
230

View all sizes

Code Description Length (mm) Diameter Surf. protect Max. thickness UOM No. pcs Stock
PS1655060 Self-drilling screw PS3 with EPDM Zn 5,5/6,3x60 P16, footprint: 8 60 5,5/6,3 Zn 31 -45 1/C 500 Sign up or log in to view availability and prices.
PS1655082 Self-drilling screw PS3 with EPDM Zn 5,5/6,3x82 P16, footprint: 8 82 5,5/6,3 Zn 43 - 67 1/C 500 Sign up or log in to view availability and prices.
PS1655098 Self-drilling screw PS3 with EPDM Zn 5,5/6,3x98 P16, footprint: 8 98 5,5/6,3 Zn 54 - 83 1/C 500 Sign up or log in to view availability and prices.
PS1655115 Self-drilling screw PS3 with EPDM Zn 5,5/6,3x115 P16, footprint: 8 115 5,5/6,3 Zn 56 - 100 1/C 500 Sign up or log in to view availability and prices.
PS1655130 Self-drilling screw PS3 with EPDM Zn 5,5/6,3x130 P16, footprint: 8 130 5,5/6,3 Zn 66 - 115 1/C 200 Sign up or log in to view availability and prices.
PS1655150 Self-drilling screw PS3 with EPDM Zn 5,5/6,3x150 P16, footprint: 8 150 5,5/6,3 Zn 86 - 135 1/C 200 Sign up or log in to view availability and prices.
PS1655180 Self-drilling screw PS3 with EPDM Zn 5,5/6,3x180 P16, footprint: 8 180 5,5/6,3 Zn 116 - 165 1/C 200 Sign up or log in to view availability and prices.
PS1955195 Self-drilling screw with EPDM A2 5,5/6,3x195 P19, footprint: 8 195 5,5/6,3 130 - 185 1/C 200 Sign up or log in to view availability and prices.
PS1955230 Self-drilling screw with EPDM A2 5,5/6,3x230 P19, footprint: 8 230 5,5/6,3 166 - 215 1/C 200 Sign up or log in to view availability and prices.
