PS 5 + ARVUL

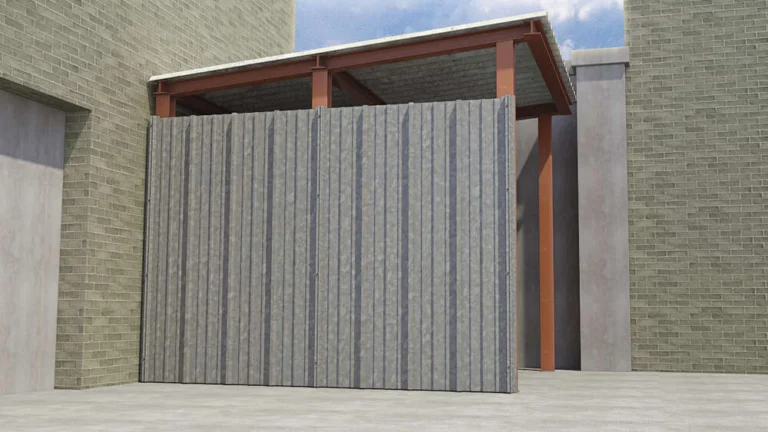

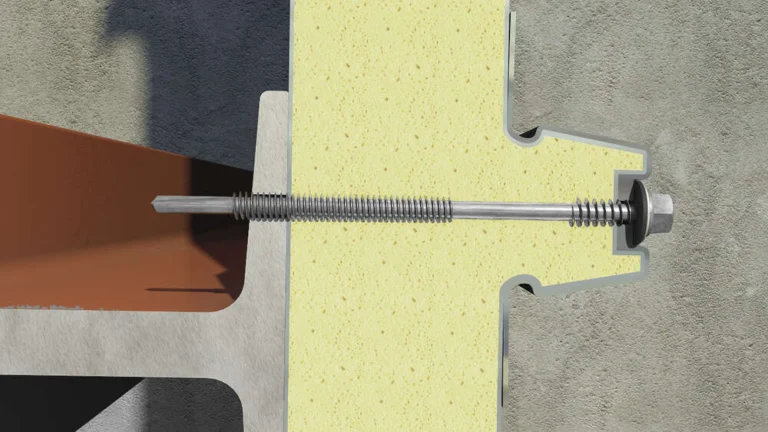

Screw for sandwich panels mounted with a vulcanised EPDM steel washer. It is self-drilling, with a hexagonal head and incorporates a stamped washer. It allows panels to be fixed to beams in roofs or enclosures. Its extra-long drill point (#5) allows direct installation on the material, without pre-drilling. The vulcanised EPDM washer allows watertight joints to be achieved. It is made of galvanised steel.

Body material

Select
Select
Steel
A2

Diameter

Select
Select
5,5/6,3

Length

Select
Select
75
85
105
130
150
175
200
230
255
285

View all sizes

Code Description Length (mm) Diameter Surf. protect Max. thickness UOM No. pcs Stock
PSL1655075 Self-drilling screw PS5 with EPDM Zn 5,5/6,3x75 P16, footprint: 8 75 5,5/6,3 Zn 33 - 60 1/C 500 Sign up or log in to view availability and prices.
PSL1655085 Self-drilling screw PS5 with EPDM Zn 5,5/6,3x85 P16, footprint: 8 85 5,5/6,3 Zn 38 - 70 1/C 500 Sign up or log in to view availability and prices.
PSL1655105 Self-drilling screw PS5 with EPDM Zn 5,5/6,3x105 P16, footprint: 8 105 5,5/6,3 Zn 48 - 90 1/C 500 Sign up or log in to view availability and prices.
PSL1655130 Self-drilling screw PS5 with EPDM Zn 5,5/6,3x130 P16, footprint: 8 130 5,5/6,3 Zn 63 - 115 1/C 250 Sign up or log in to view availability and prices.
PSL1655150 Self-drilling screw PS5 with EPDM Zn 5,5/6,3x150 P16, footprint: 8 150 5,5/6,3 Zn 83 - 135 1/C 250 Sign up or log in to view availability and prices.
PSL1655175 Self-drilling screw PS5 with EPDM Zn 5,5/6,3x175 P16, footprint: 8 175 5,5/6,3 Zn 108 - 160 1/C 200 Sign up or log in to view availability and prices.
PSL1655200 Self-drilling screw PS5 with EPDM Zn 5,5/6,3x200 P16, footprint: 8 200 5,5/6,3 Zn 133 - 185 1/C 200 Sign up or log in to view availability and prices.
PSL1655230 Self-drilling screw PS5 with EPDM Zn 5,5/6,3x230 P16, footprint: 8 230 5,5/6,3 Zn 163 - 215 1/C 200 Sign up or log in to view availability and prices.
PSL1955255 Self-drilling screw PS5 with EPDM A2 5,5x255 P19, footprint: 8 255 5,5/6,3 173 - 240 1/C 200 Sign up or log in to view availability and prices.
PSL1955285 Self-drilling screw PS5 with EPDM A2 5,5x285 P19, footprint: 8 285 5,5/6,3 203 - 270 1/C 200 Sign up or log in to view availability and prices.
