ABA

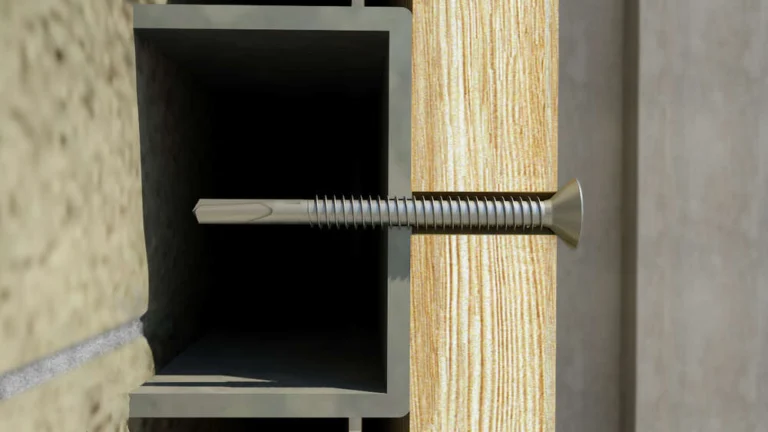

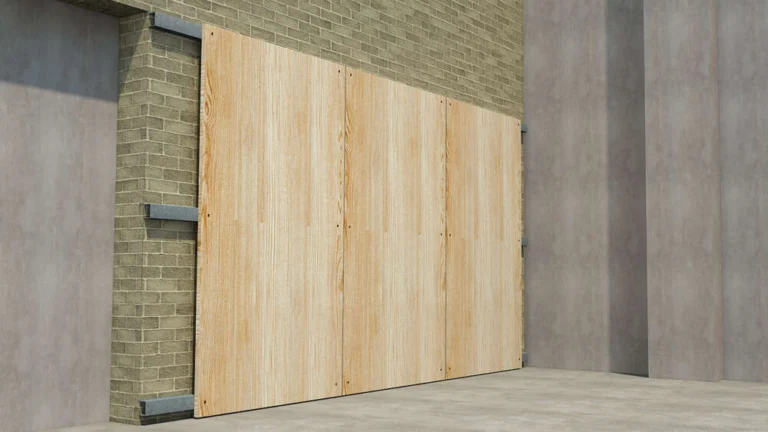

Self-drilling wood-metal screw with two-wing drill bit, countersunk head and PH drive. For fastening wooden parts to metal profiles. Features a 60° metal thread. The countersunk head ensures that the screw is flush with the wood after installation. Made of zinc-coated steel.

Body material

Select
Select
Steel

Diameter

Select
Select
4,8
5,5
6,3

Length

Select
Select
32
38
45
50
55
60
65
70
85

View all sizes

Code Description Length (mm) Diameter Surf. protect Max. thickness UOM No. pcs Stock
ABA4832 Self-drilling screw ABA Zn 4,8x32, footprint: PH2 32 4,8 Zn 16 1/C 500 Sign up or log in to view availability and prices.
ABA4838 Self-drilling screw ABA Zn 4,8x38, footprint: PH2 38 4,8 Zn 22 1/C 500 Sign up or log in to view availability and prices.
ABA4845 Self-drilling screw ABA Zn 4,8x45, footprint: PH2 45 4,8 Zn 29 1/C 500 Sign up or log in to view availability and prices.
ABA4850 Self-drilling screw ABA Zn 4,8x50, footprint: PH2 50 4,8 Zn 34 1/C 500 Sign up or log in to view availability and prices.
ABA5538 Self-drilling screw ABA Zn 5,5x38, footprint: PH2 38 5,5 Zn 19 1/C 500 Sign up or log in to view availability and prices.
ABA5545 Self-drilling screw ABA Zn 5,5x45, footprint: PH2 45 5,5 Zn 26 1/C 500 Sign up or log in to view availability and prices.
ABA5555 Self-drilling screw ABA Zn 5,5x55, footprint: PH2 55 5,5 Zn 36 1/C 500 Sign up or log in to view availability and prices.
ABA5565 Self-drilling screw ABA Zn 5,5x65, footprint: PH2 65 5,5 Zn 46 1/C 500 Sign up or log in to view availability and prices.
ABA6360 Self-drilling screw ABA Zn 6,3x60, footprint: PH3 60 6,3 Zn 40 1/C 250 Sign up or log in to view availability and prices.
ABA6370 Self-drilling screw ABA Zn 6,3x70, footprint: PH3 70 6,3 Zn 50 1/C 250 Sign up or log in to view availability and prices.
ABA6385 Self-drilling screw ABA Zn 6,3x85, footprint: PH3 85 6,3 Zn 65 1/C 250 Sign up or log in to view availability and prices.
